20' x 36' Phippsburg Cottage
We designed and built this timber frame home for clients constructing a second home 'off-the-grid' on the coast of Maine. The first floor includes the master bedroom and an open dining/living area. The second floor has enough room for two bedrooms. We hope you enjoy the photos as much as we enjoyed creating this very special BungalowInABox.We added a 10' x 24' timber frame porch to provide outdoor living space that offers a shaded area to enjoy the nature preserve behind the house.
Floor Plan and Elevations:
Click a thumbnail to start this slideshow.Construction Photos: Click a thumbnail to start this slideshow.

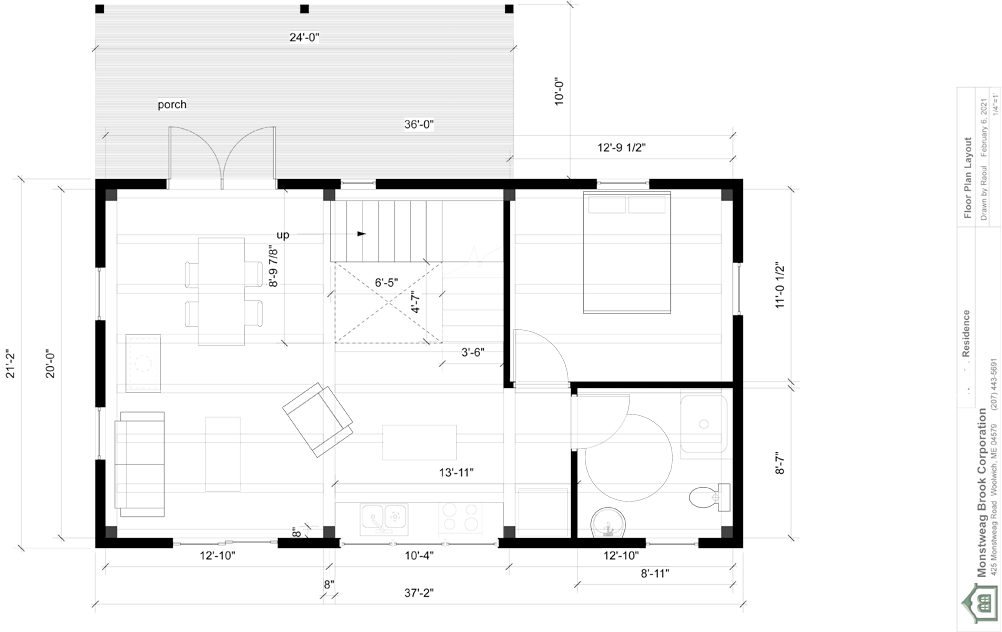

Floor Plan
Porch Elevation

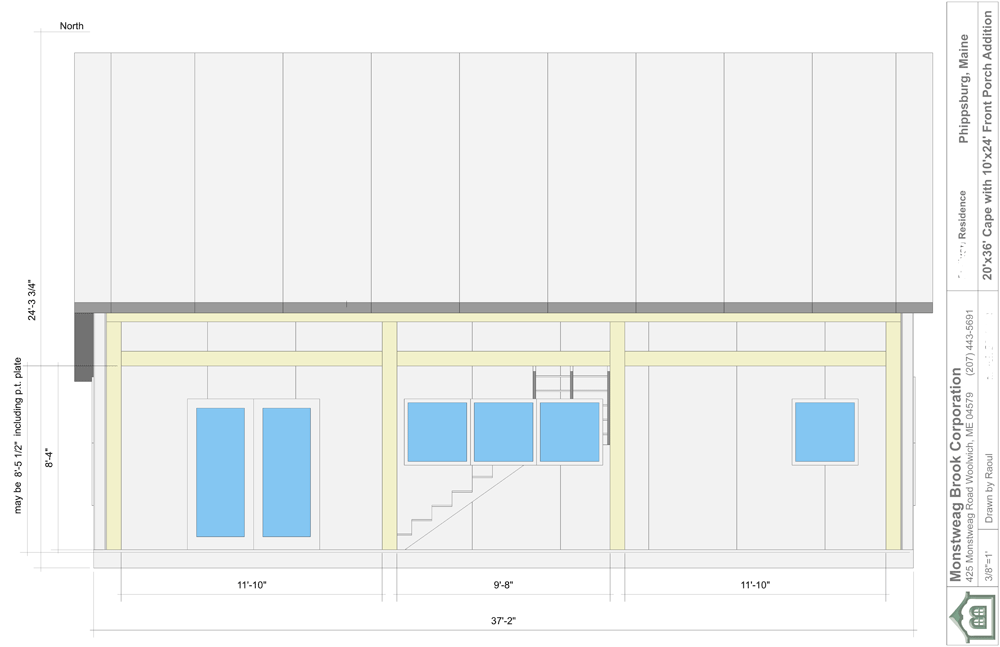

North Elevation
Clearing tree

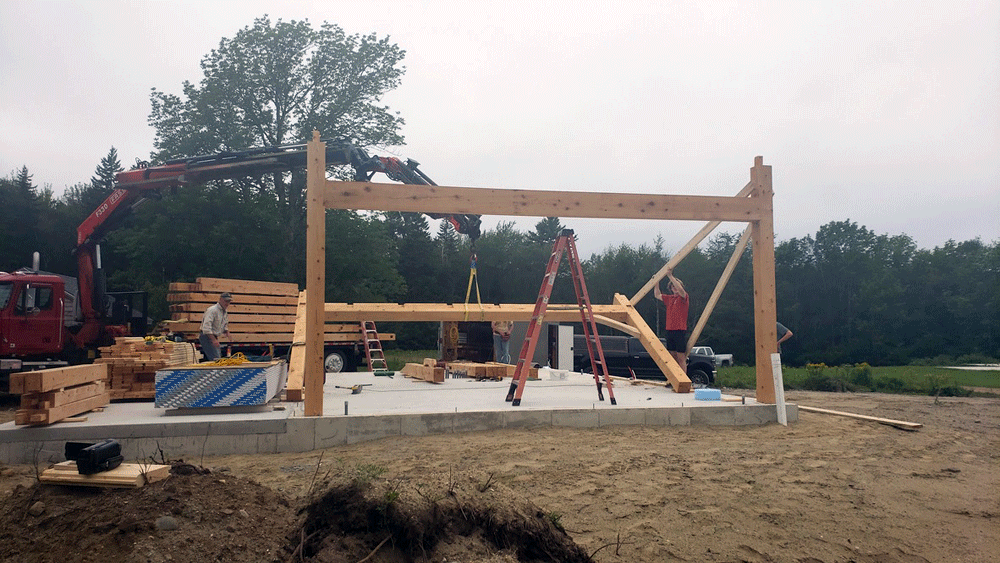

First bent

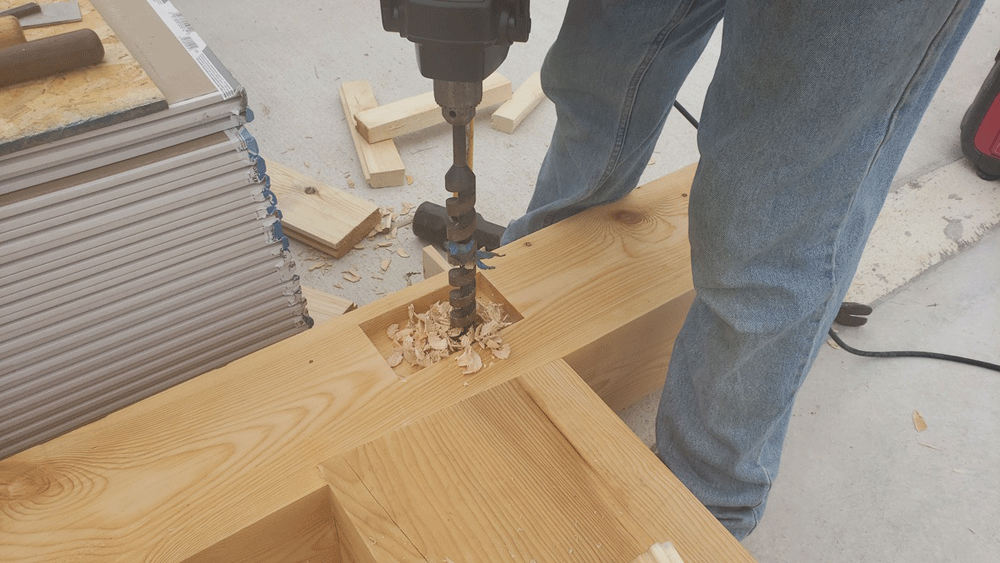

Peg holes

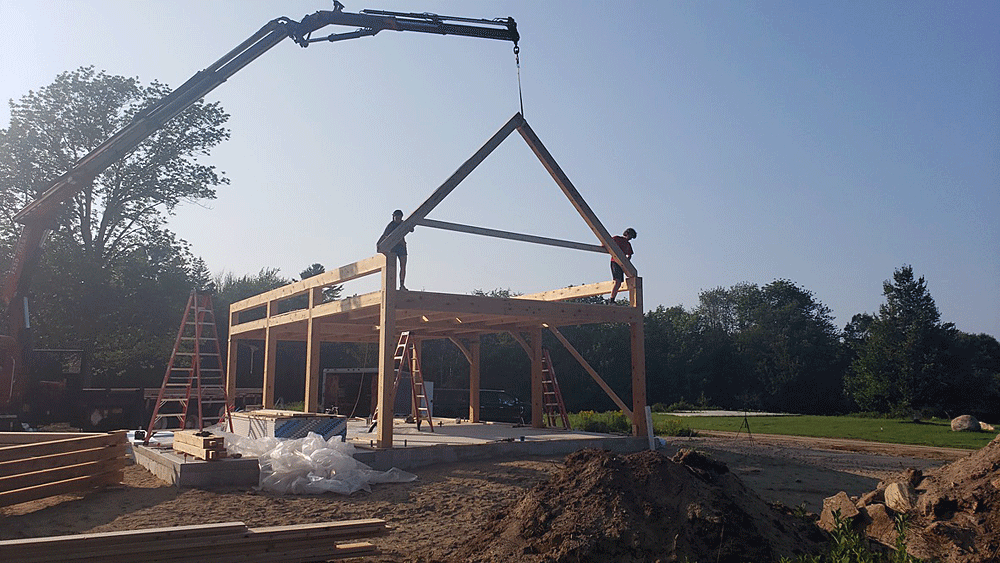

Raising second bent
Installing joists
Positioning post

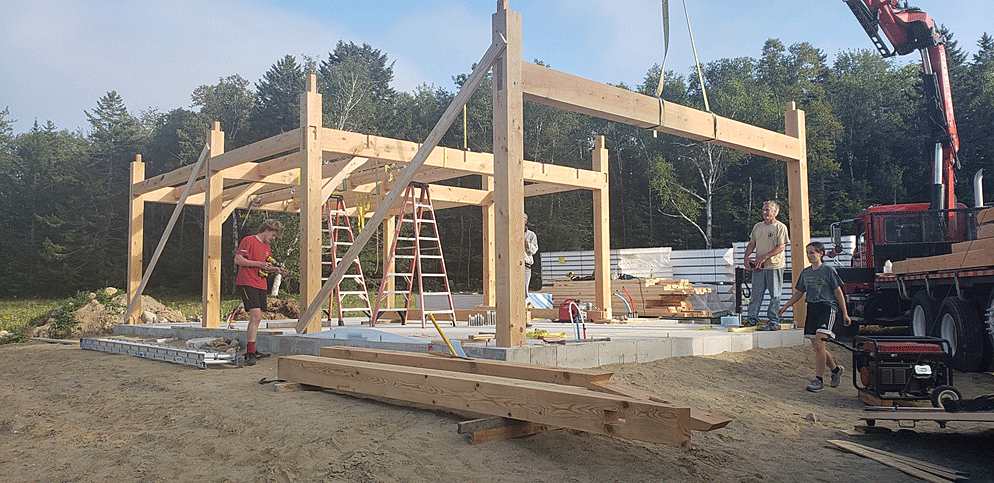

Bents raised
Pine boards

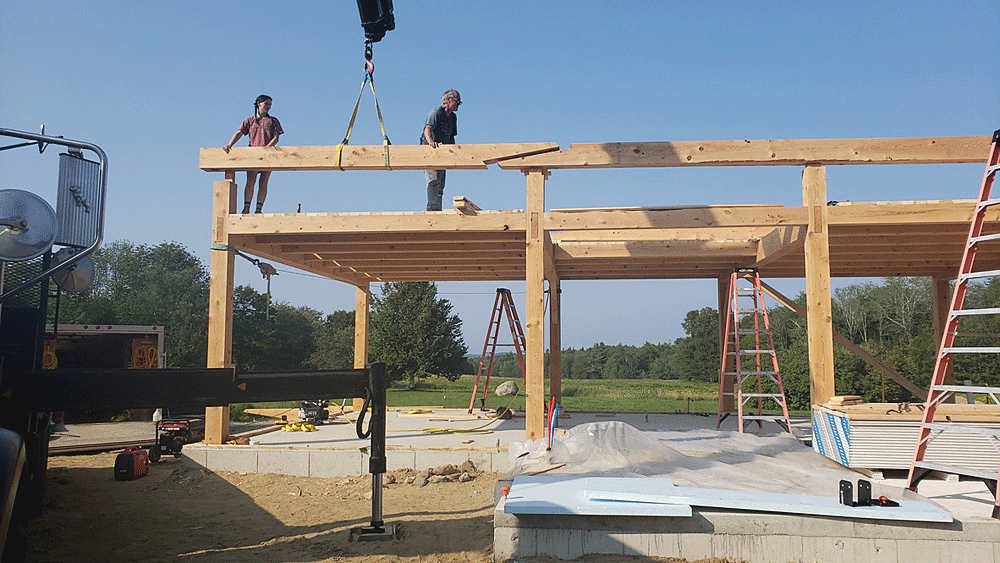

Installing plates

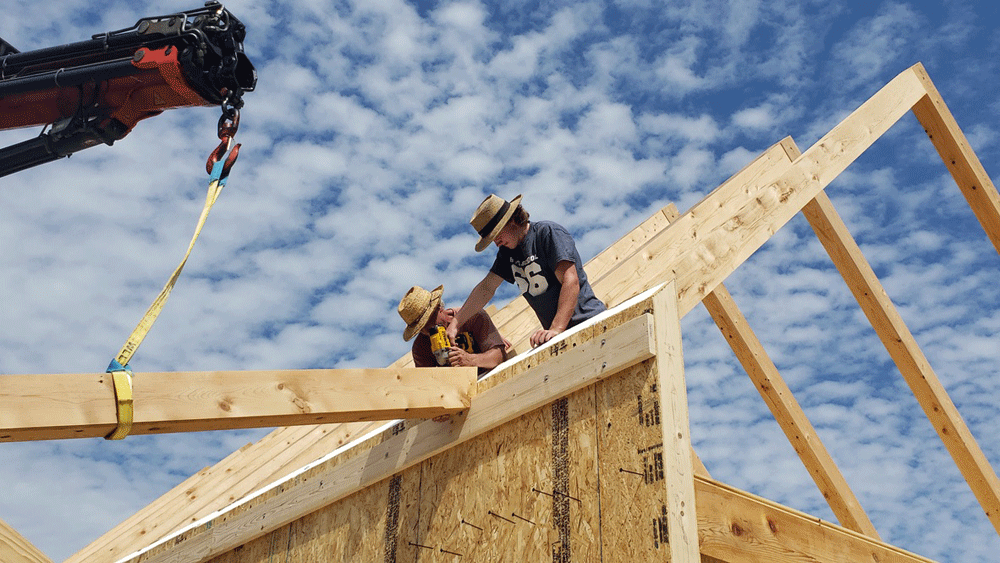

First rafter set

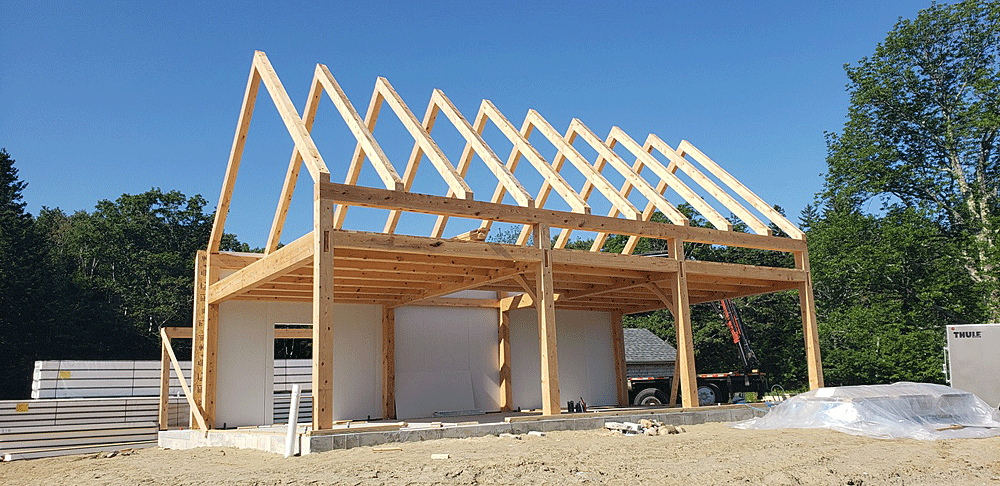

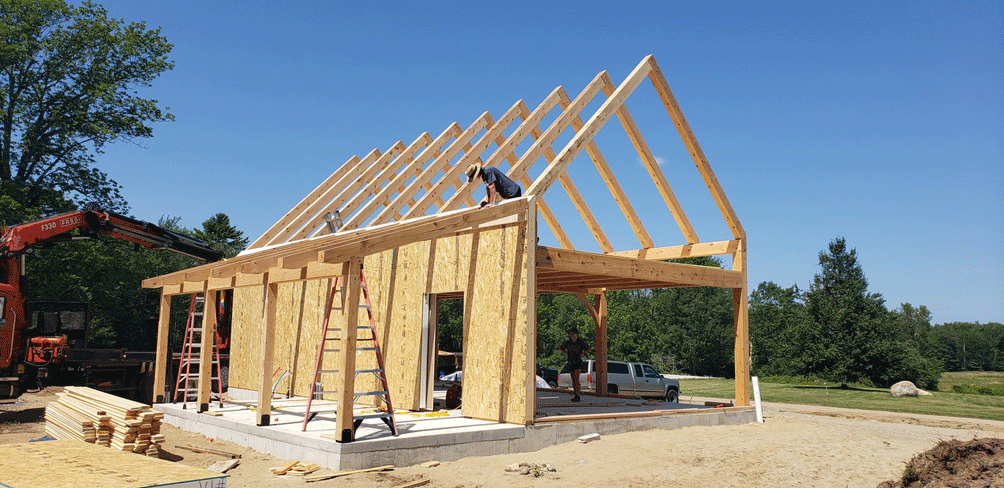

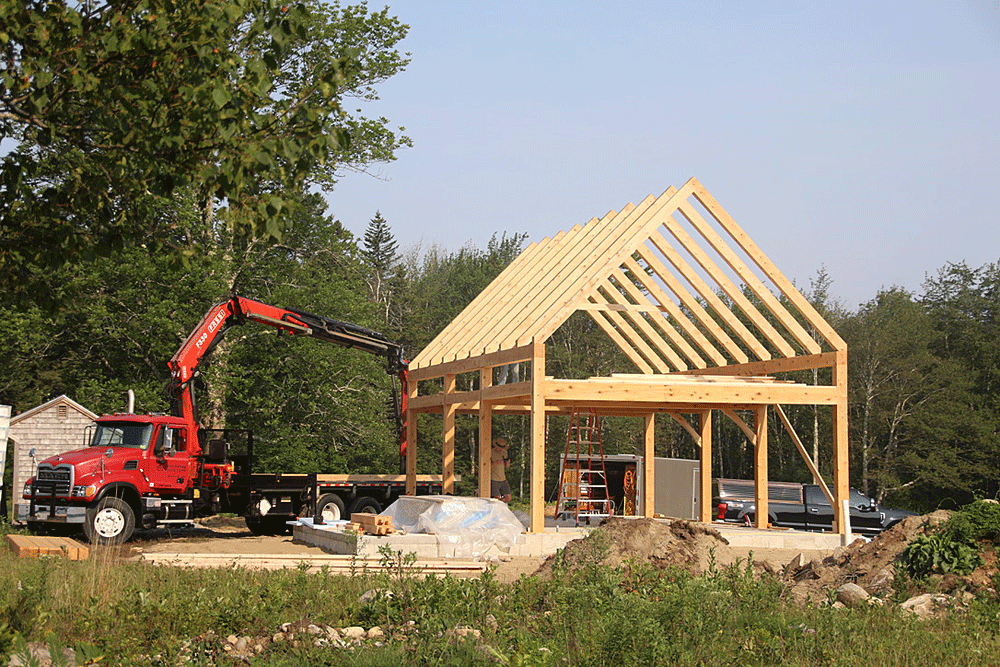

More rafter sets
Main frame finished

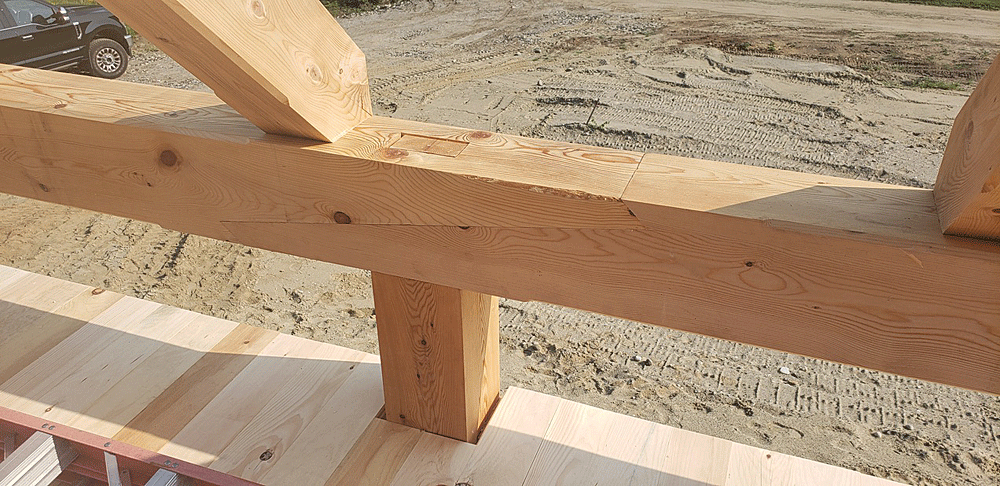

Scarf joint

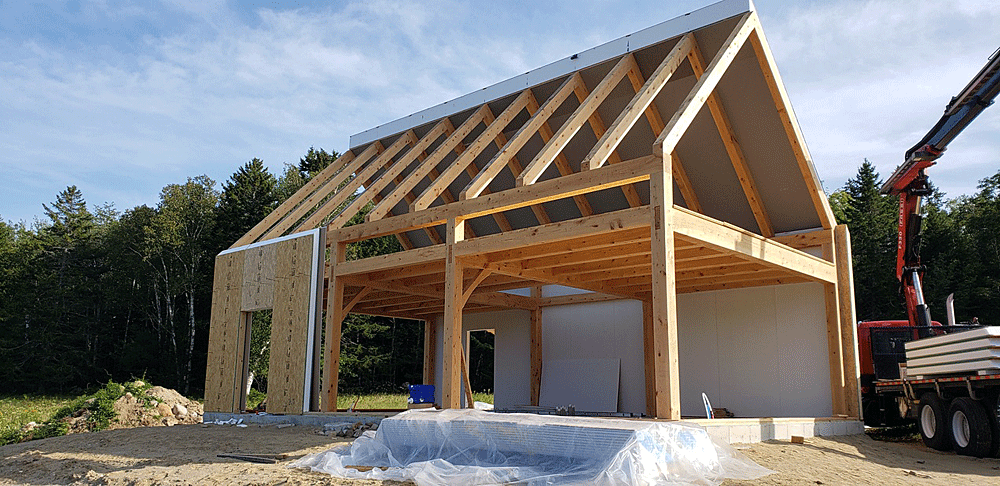

Eave wall panels
From the other side
Porch rafters
Porch frame

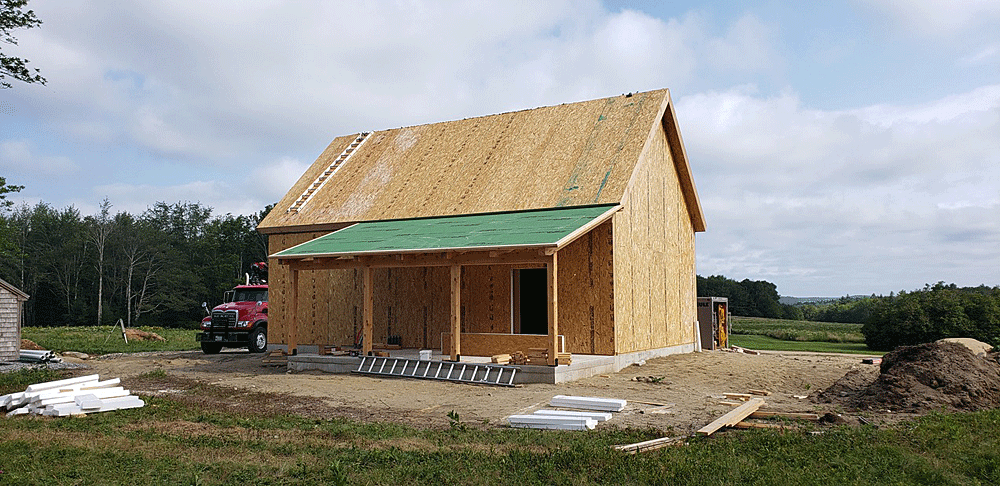

First roof panel
Eave wall panels
More wall panels

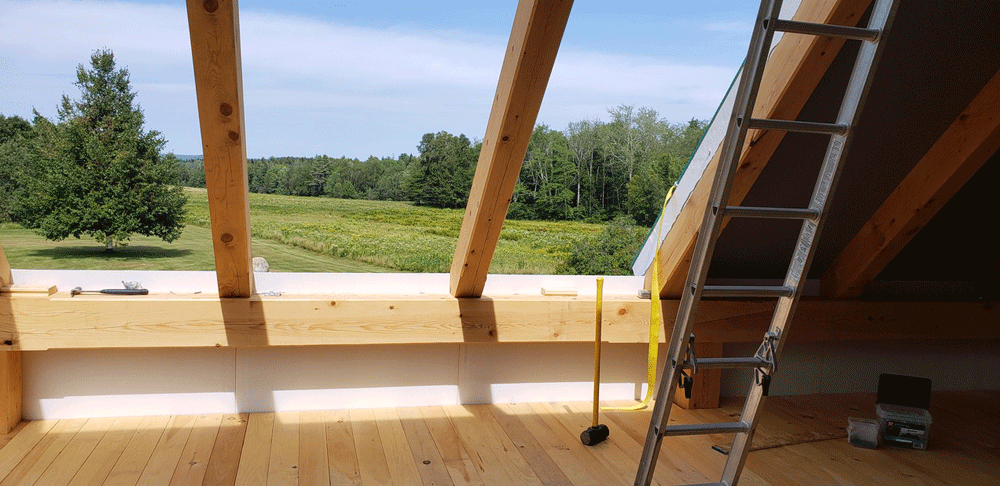

Inside, out

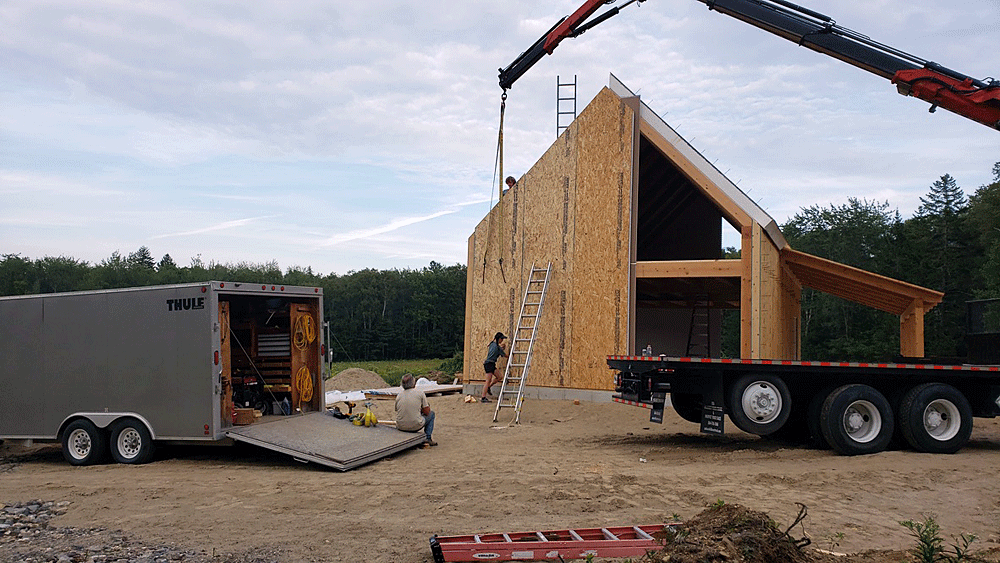

Gable end
Other gable end
SIPs installed

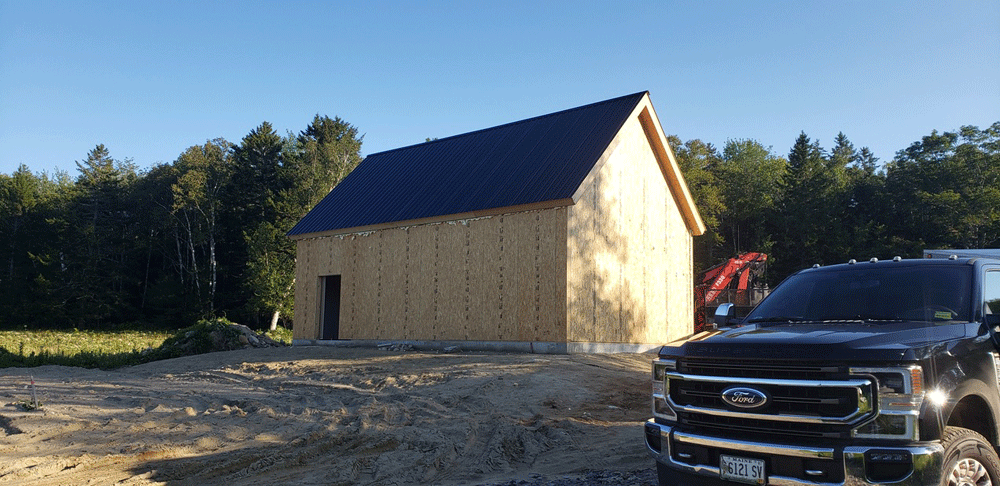

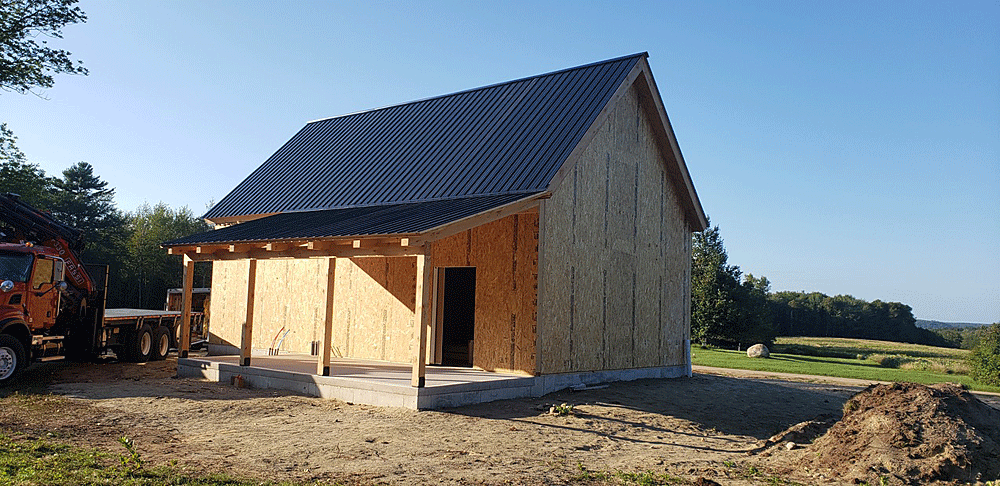

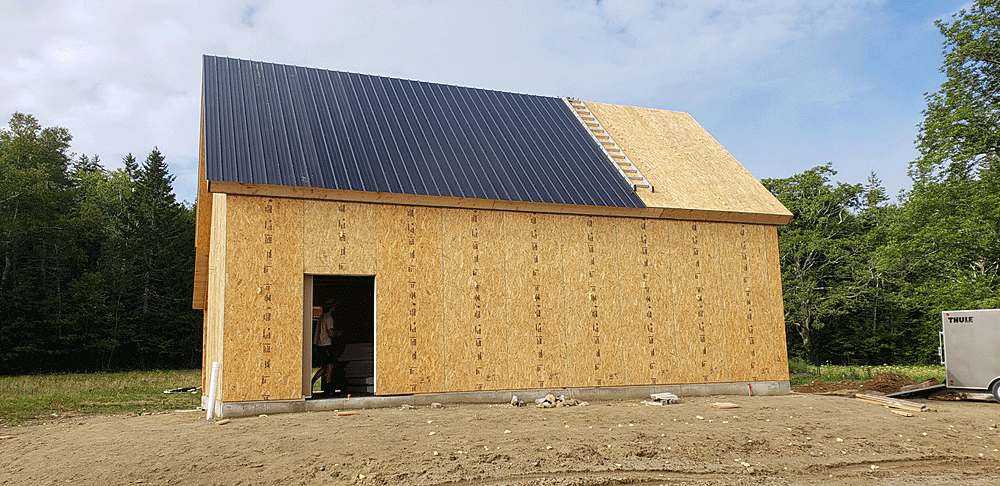

Black metal roof

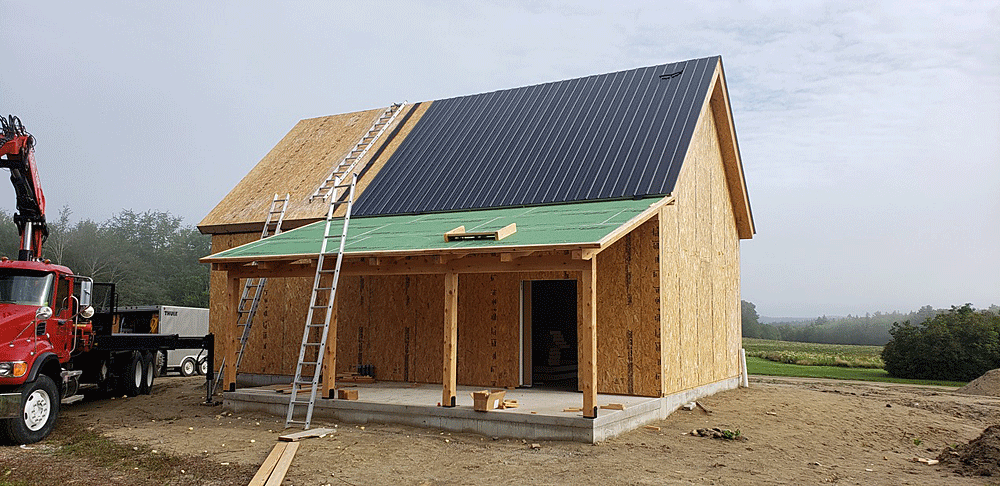

More roofing

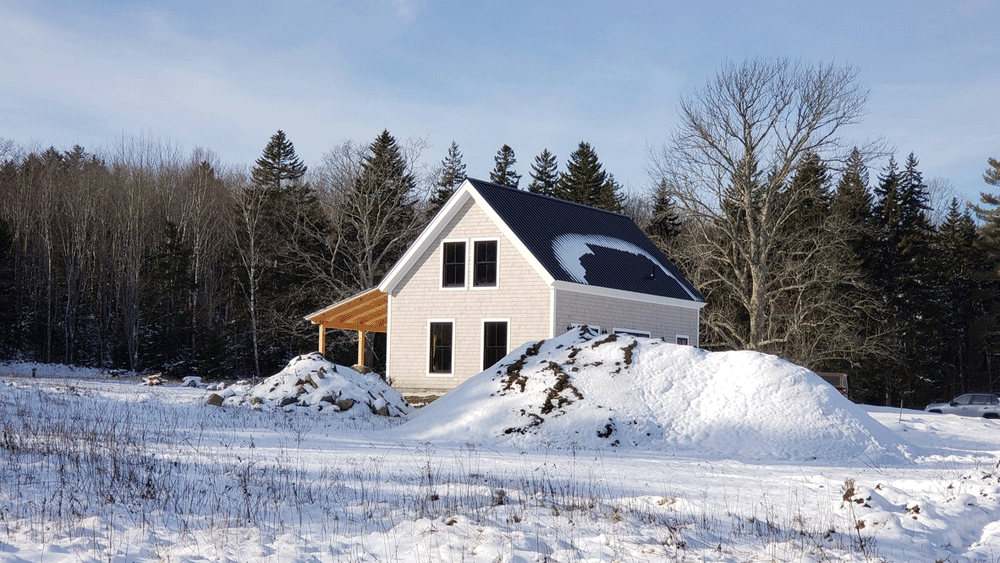

Road-side view

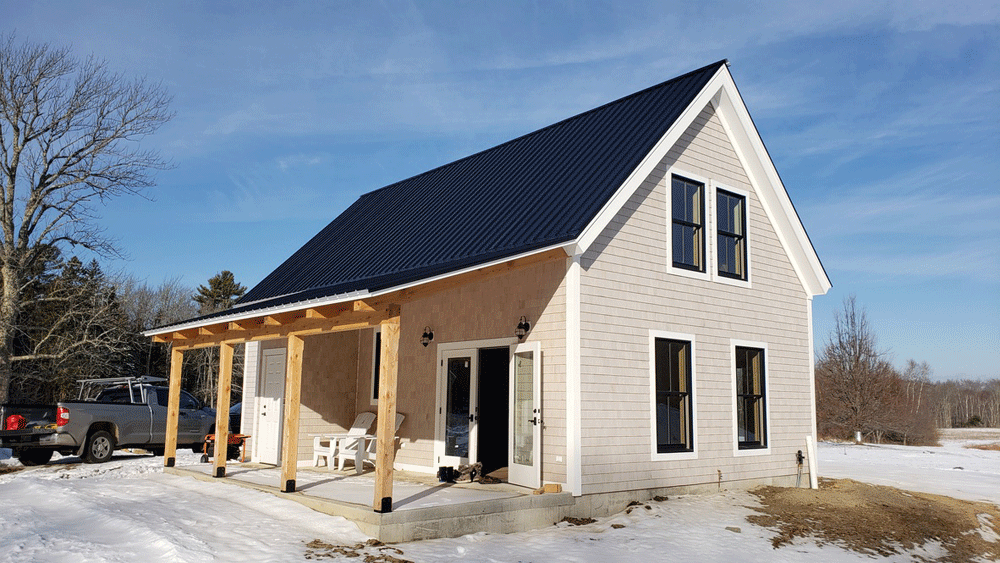

Porch-side view
Sheathed Roof
